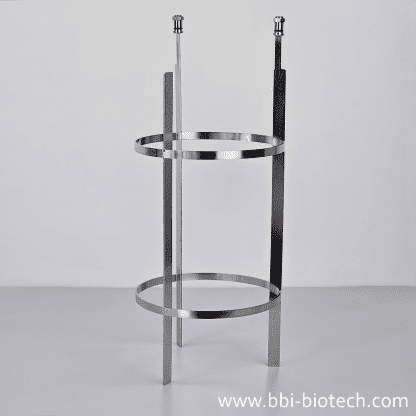

10 L baffle

SKU: BBI-43230034 Categories: ,

Description

  • Flow resistance
  • Improves mixing of medium at low stirring speeds and oxygen input
  • Prevents the generation of fluid vortices at high stirring speeds
  • 4 baffles on one ring
  • Installation centered to the stirrer shaft
  • Improved design: Prevents clogging between baffles and vessel wall
  • Development by bbi-biotech
  • Also available for other vessel sizes
  • Similar to pictures shown
  • Installation port: 11 mm
  • Ø = 182 mm

Additional information

Manufacturer

bbi-biotech

Components

1x baffle, 2x o-ring [BBI-45100011], 2x coupling nut M 10 x 1 (flat) [BBI-44130009]

Material

Stainless steel 316L, EPDM black

External thread

M 10 x 1

Material certificate 3.1

available

Roughness certificate

available

FDA certificate

available

Synonyms

baffle insert
